Complete Cross Shaft Power Press Machines Solutions

Professional-grade Cross Shaft Power Press Machiness engineered for precision, reliability, and exceptional performance across multiple industries.

Our Product Range

Advanced manufacturing equipment with proven performance in automotive, electrical, and appliance industries

Cross Shaft Power Press Machines

Heavy-duty Cross Shaft Power Press Machines designed for industrial applications requiring precision and reliability.

Technical Specifications:
Machines Tonnage: 20 - 250 Ton
Capacity: 3.5 - 14 Ton
Stroke Length: 50 MM - 120 MM
Pad Are: 285 x 210 - 740 x 540
Request Specifications
Cross Shaft Power Press Machines

Kalyani Engitech's Cross Shaft Power Press Machines represent the pinnacle of precision engineering and reliability in industrial pressing applications. Engineered with cutting-edge hydraulic technology, these machines deliver exceptional performance across automotive, electrical appliance, and industrial manufacturing sectors.

Available in a comprehensive range from 25-ton to 250-ton capacity, our press machines are designed to meet diverse production requirements. Each model is engineered with dual gearing options (Single Gear and Hydraulic Gear) to optimize performance across different production speeds and applications.

Key Advantages:
  • Imported Hydraulic Components: Premium cylinders and pumps from international suppliers ensure durability and performance
  • Advanced Load Monitoring: Real-time load detection and pressure management systems
  • Enhanced Safety Features: Integrated safety interlocks, emergency stop systems, and knock-out mechanisms
  • Precision Control: PLC-controlled automation with HMI interface for exceptional accuracy
  • Variable Speed Operation: Dual-speed capability (fixed and variable SPM) adaptable to different production needs
  • Extended Machine Life: Robust construction engineered for 50,000+ operating hours
  • Low Maintenance Design: Automatic greasing system and simplified maintenance protocols
  • Customizable Options: 18 standard attachments plus optional add-ons available
Applications:

Ideal for:

  • Automotive component manufacturing (body parts, chassis components)
  • Electrical appliance production (refrigerator parts, washing machine components)
  • Metal stamping and forming operations
  • Precision component fabrication
  • High-volume mass production environments
Why Choose Kalyani Engitech:
  • Proven track record across automotive and appliance industries
  • Complete customization and integration support
  • Comprehensive after-sales service and spare parts availability
  • Expert technical support and training for operators
  • Competitive pricing with superior quality assurance
Detailed Technical Specifications:

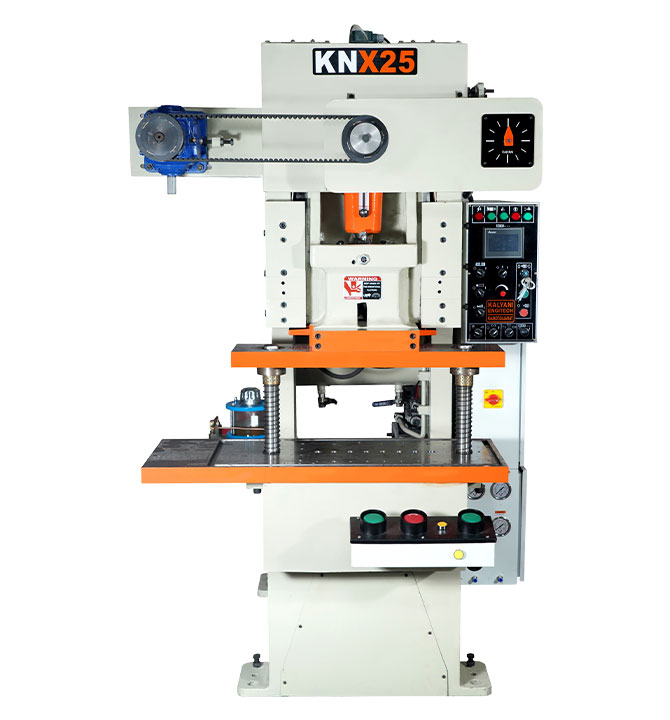

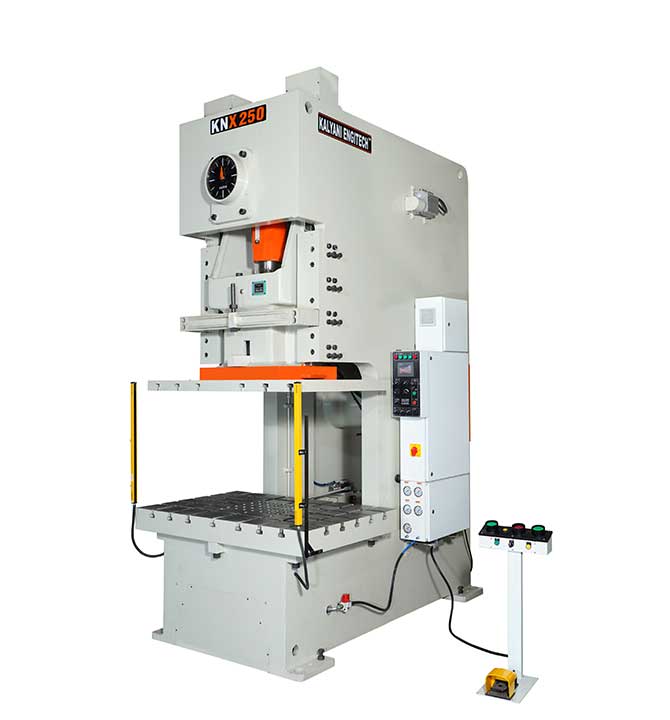

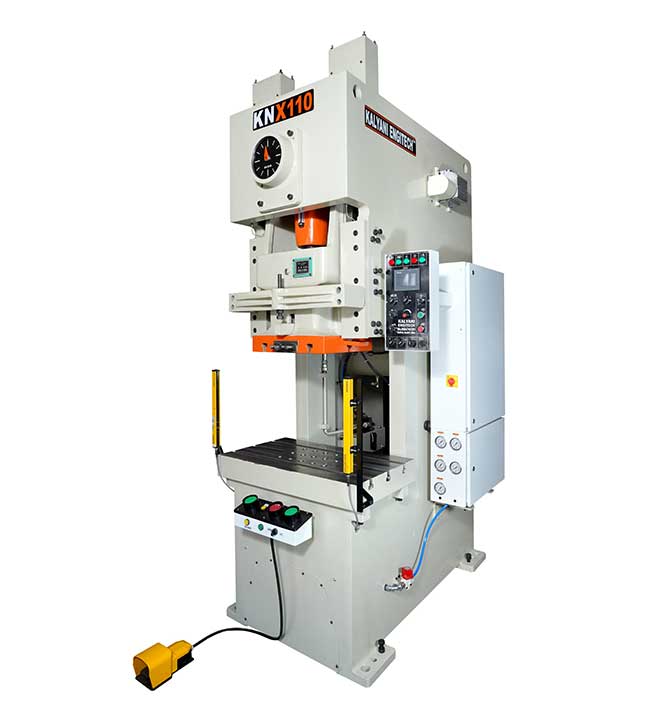

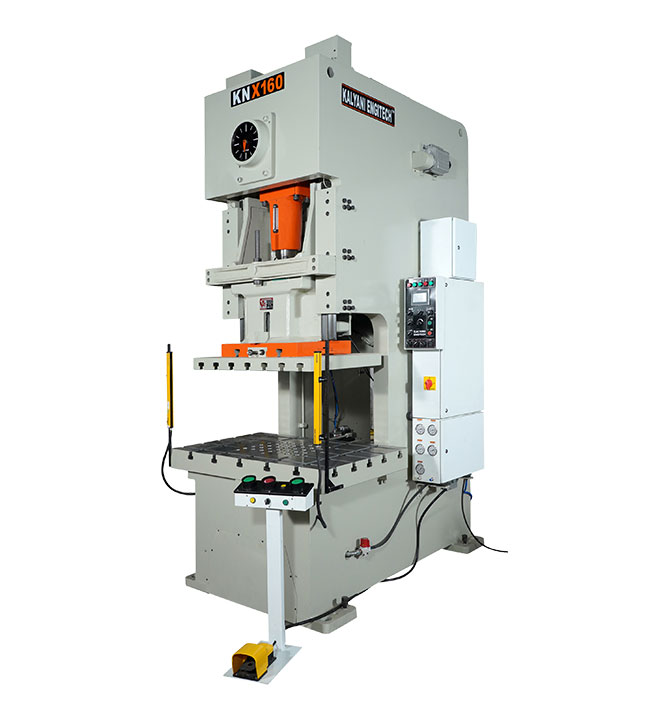

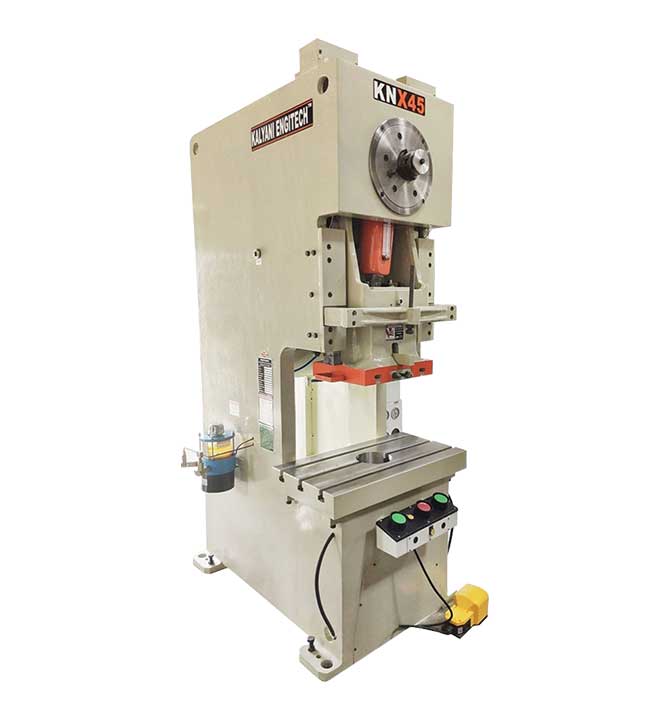

KALYANI ENGITECH KNX-25 KNX-35 KNX-45 KNX-63 KNX-80 KNX-110 KNX-160 KNX-200 KNX-250
TECHNICAL DETAILS & CAPACITY NG SG NG HG SG NG HG SG NG HG SG HG SG HG SG HG SG HG SG HG SG
FIX STROKE Lenght 40 80 40 40 90 50 50 110 50 50 110 60 150 70 160 80 200 90 220 100 250
STROKE ADJUSTMENT 08-40 08-80 08-40 08-40 08-88 08-50 08-50 08-88 08-50 08-50 8-100 08-60 8-100 08-70 8-125 - 8-160 - - - 20-160
STROKE PER MINUTE (FIXED) 150 90 150 130 80 140 120 70 130 100 60 100 60 80 50 80 40 65 35 55 30
STROKE PER MINUTE (VARIABLE) 100-200 60-90 100-200 80-170 60-90 100-180 80-180 50-80 100-160 80-150 40-70 60-130 40-70 60-120 35-60 50-100 30-50 40-80 25-45 30-70 25-40
RATING POINT 1 3.2 1.2 2.3 3.2 1.5 2.3 3.2 1.5 2.3 4 3 4.5 3 5 3.5 6 3.5 6 4 6
DIE HEIGHT 230 250 270 300 330 360 360 450 450
SLIDE ADJUSTMENT 50 50 60 70 80 90 90 110 120
SLIDE AREA (F x B) 330 X 250 380 X 300 430 X 350 500 X 400 560 X 460 650 X 520 650 X 520 860 X 650 960 X 720
TOOL BORE 40 50.8 50.8 50.8 50.8 63 63 80 80
BOLSTER AREA 700 X 320 780 X 400 840 X 440 900 X 520 1050 X 600 1150 X 680 1150 X 680 1400 X 840 1500 X 900
BOLSTER THICKNESS 80 85 110 120 140 140 140 180 180
FLOOR TO BOLSTER 800 800 800 860 900 900 900 1000 1000
CLEAR DIST. BOLSTER TO RAM 430 490 495 580 620 670 670 900 940
MOTOR FIXED (H.P / RPM) 3 X 4 3 X 4 5 X 4 7.5 X 4 10 X 4 10 X 4 10 X 4 20 X 4 25 X 4
MOTOR VARIABLE (H.P / RPM) 5 X 4 5 X 4 7.5 X 4 10 X 4 15 X 4 15 X 4 15 X 4 25 X 4 30 X 4
SLIDE ADJ. MOTOR NA NA NA 0.4 0.4 0.75 0.75 1.5 1.5
SIZE WL-H 1060 X 1325 X 2120 1230 X 1520 X 2225 1260 X 1590 X 2265 1430 X 1775 X 2680 1430 X 1775 X 2765 1560 X 1980 X 3015 1560 X 1980 X 3015 1880 X 2440 X 3730 2010 X 2760 X 4080

Note: NG = Un-Geared | SG = Standard Geared | HG = High Speed | SPM = Strokes Per Minute | NA = Not Applicable

All specifications subject to technical review. For detailed information, please contact our sales team.

Available Technical Documents:
Complete Product Brochure

Comprehensive catalogue featuring all KNX series models (25-250 Ton) with detailed specifications, dimensions, and technical data

Download PDF
Standard Attachments
  • Combination of Pneumatic Clutch and Brake
  • PLC Control With HMI & Programming System
  • Rotary Cam Limit Switch
  • Dual Solenoid Valve
  • Electrical Control Panel
  • Hydraulic Overload Safety System
  • Auto Greases Lubrication System
  • Manual Slide Adjustment (From 25Ton – 45Ton)
  • Motorized Slide Adj. (From 63ton and Above)
  • Knock Out System
  • Die Height Indicator
  • Counter Balancer of Slide
  • Miss Feed Sockets
  • Air Outlets
  • Photo Electric Safety Guard
  • Anti-Vibration Mount Pad
  • Die Area Light
  • Anti – repeat Safety Device
Optional Attachments
  • Variable Stroke
  • Pneumatic Die Cushion
  • Programmable Cam Controller
  • Quick Die Change System
